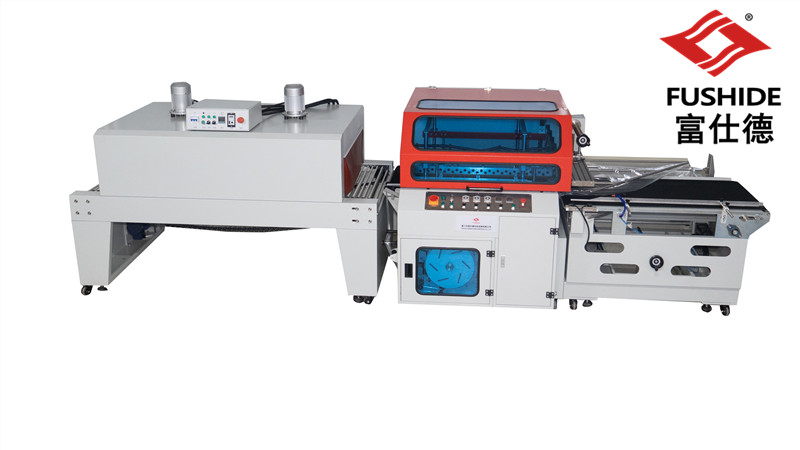

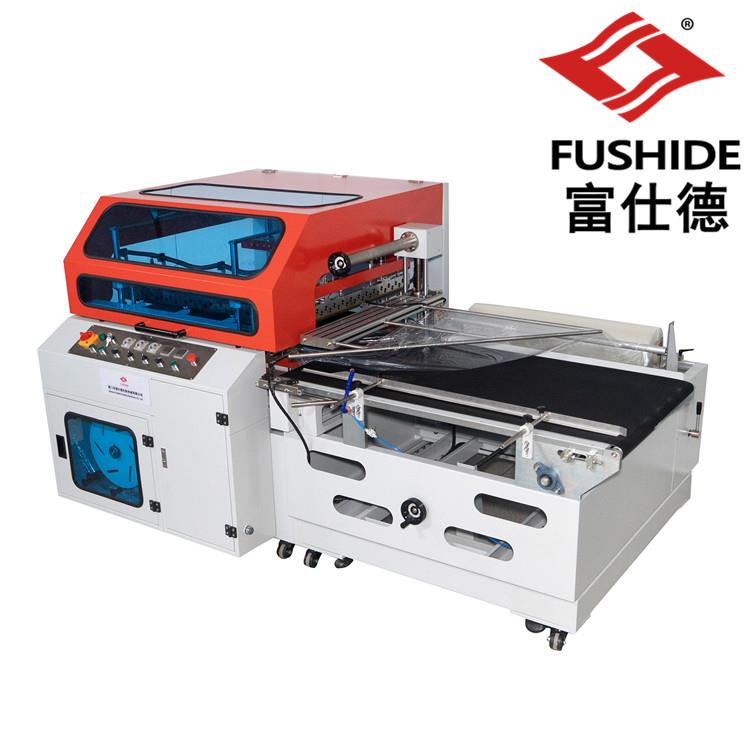

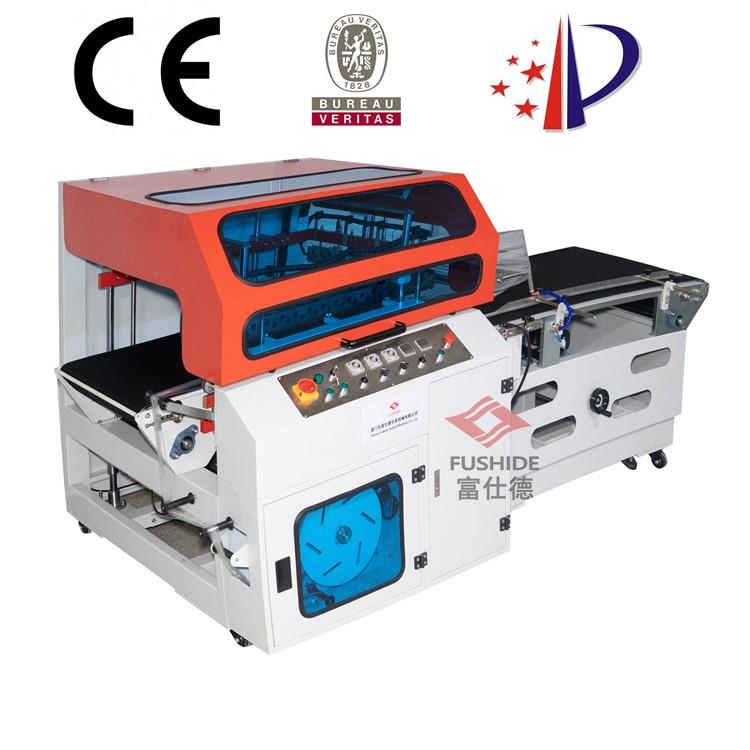

Fully automatic L bar sealer sealing heat shrink film packing packaging wrapping machine (Vertical sealing and cutting）
Voltage:220V/ 50Hz
Power Unit:3K W
Air pressure:6- 8K g/ cm²
Net weight:800K G
Machine overall size:L2735*W1705*H1450(mm)
Sealing cutter size:L800*W1250(mm)
Packing size:L(100~950)*W(60~700)*H(5~230)mm
Packing speed:10- 35(Pack/min)
Product Details
Questions
Online Feedback
Technology
*The holder of sealing blade is driven vertically by a four-column system, which can overcome the breakage, wrinkle, material waste and off-center sealing line the traditional L-shape shrink wrapper had, and make it available for more packing films in different quality.
*When there is big height distinction of products,can adjust suitable sealing opening height.This can make sure the sealing line in the middle and reduce sealing cutter time.So increase production speed and reduce cost. *Adopt level and vertical photoelectric eye,can switch easyly.It is fast to do packing for thin and samll products. Very easy to finish packing.
*Adopt most advanced PLC programming,easy operating ,which have safety protection and alarm function. *It is particularly suitable for large size products in single or combined packaging.
Usable range
Applied to bulk production in industy like tea leaf, food, cosmetics,printings, health care products, beverages, rubber products, adhesive tape, bathing, chemical products,photo albums, photo frames and other handicrafts.
We reserved the rights to modify the machine parameters,and actual parameter will subject to final confirmation.
----------------------------------------------------------------
